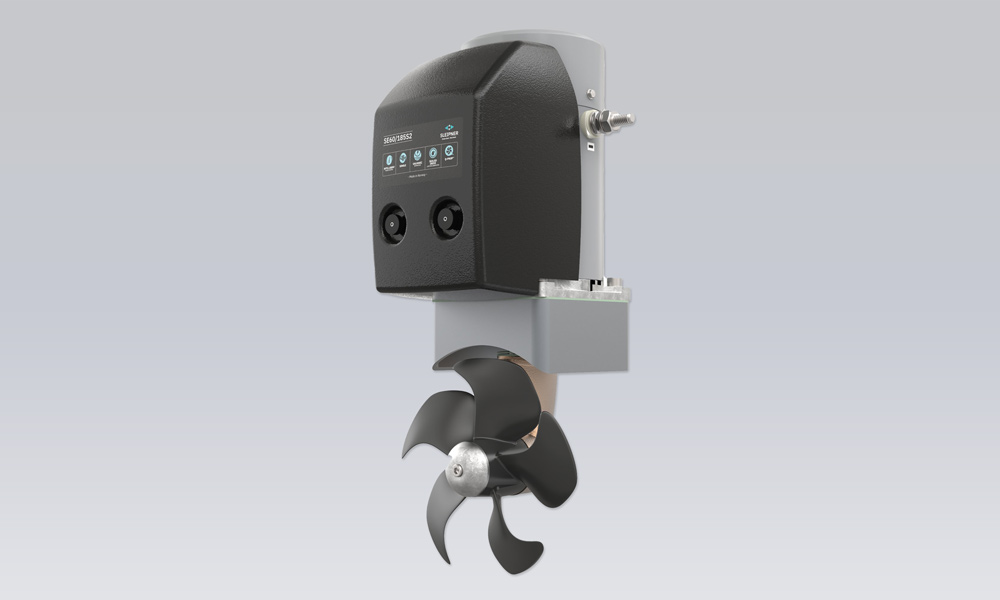

SE60 tunnel bow/stern thruster 24V

£1,635.00 (excl. VAT)
£1,962.00 (incl. VAT)

About this item

A powerful bowthruster suitable for narrowboats from 50’ to 65’. It makes cruising effortless either on your own or as a couple. Although this is an expensive addition, it is however, a lot cheaper than a divorce.

Quantity

Ease of Maneuvering and Safety

The Sleipner SE60 bow thruster is one of the most popular models for good reason. With a powerful 60-73 kg of thrust, it offers a degree of control that is a game-changer for narrowboat handling. While some purists may prefer a barge pole, the thruster makes cruising much easier, particularly when battling wind or currents from locks. It also significantly enhances safety, as it reduces the need for people to make risky jumps on and off the boat during mooring.

Installation and Powering

Installing the SE60 in the bow is a reliable solution. For optimal performance and to minimise voltage drop, it’s a good idea to install two 12V batteries wired in series, placed as close as possible to the thruster itself. These batteries can be charged in a couple of ways. One option is to use a local battery charger, but this requires an AC power source. A more convenient alternative for many is to use a DC-to-DC converter like the Victron Orion, which can step down voltage from the main 48V system to charge the 24V thruster batteries.

NameValue
Power supply24V DC
Nominal voltage21V DC
Nominal current consumption A170A
Power output at nominal voltage2.4kW / 3.22hp
Recommended fuse AANL 150
Motor cycle duty2 – 3 min. Duty cycle at 20°c (Ambient temperature)
Thrust at 12V73kg / 160.94lbs
Thrust at 10.5V60kg / 132.28lbs
Intelligent Power ControlYes
Q-PropellerYes
Single PropellerYes
Sealed Drive LubricationYes
Galvanic SeparationYes
AnalogYes
