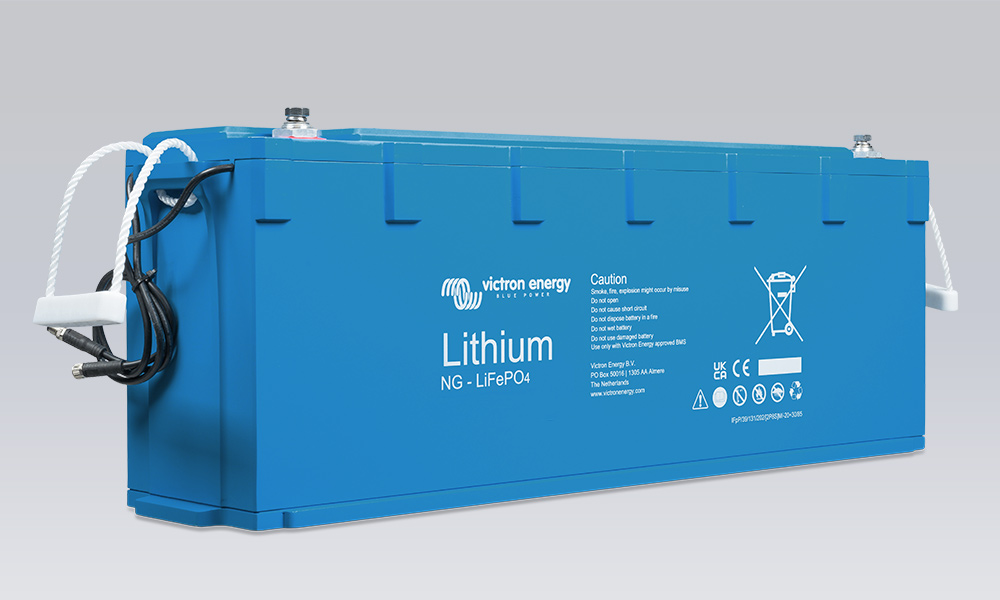

Victron 51.2V 100Ah Lithium NG Battery

£1,446.00 (excl. VAT)
£1,735.20 (incl. VAT)

A very reliable and well-built battery. When paired with the Lynx Smart BMS users can access cell-level reporting. This is needed for tougher environments and commercial applications like trip boats and to meet strict ISO standards and Maritime and Coastguard Agency (MCA).

Quantity

A Smart Power Solution for Modern Boating

The 51.2V Victron Energy Lithium NG battery offers a safe, reliable method for powering everything from inland narrowboats to seagoing vessels. Because it features an integrated shunt, the battery provides essential real-time data on voltage, current, and temperature. Consequently, you can monitor the health of your Törkmar power system with total precision.

Effortless Setup and Intelligent Control

  • Automated Detection: Once you connect the mandatory BMS, the system automatically identifies the number of batteries and their configuration.
  • Instant Monitoring: Users can view live data through the VictronConnect app on a smartphone or tablet.
  • Plug-and-Play Expansion: The intelligent detection system makes adding more capacity straightforward for the whole crew.
  • Marine-Ready Durability: An increased IP rating ensures these batteries resist dust and water splashes in damp engine rooms.

Safety Features and Battery Longevity

The BMS acts as the “brain” for your power system, providing crucial protection by constantly monitoring cell voltages. If any parameters fall outside the safe range, the BMS automatically takes action to protect your investment. For instance, it will disconnect loads to prevent over-discharge or interrupt charging if it detects extreme temperatures.

Built for the Marine Environment

Furthermore, these batteries feature a low self-discharge rate, which ensures they hold a charge for much longer periods than traditional lead-acid alternatives. This durability significantly improves the overall reliability of your energy storage. Ultimately, this intelligent control actively extends the life of your entire battery bank. Therefore, choosing the Lithium NG range provides every boater with complete peace of mind and a high-performance electrical heart for their vessel.

VictronV-LFP51.2100
Nominal voltage51.2V
Nominal capacity @ 25 °C *100 Ah
Nominal energy @ 25 °C *5120 Wh
Capacity loss(per 100 cycles, @ 25°C 100% DoD): < 1%
80% DoD2500 cycles
70% DoD3000 cycles
50% DoD5000 cycles
Max continuous discharge current (C-rate)100 A (1C)
Max pulse discharge current 10s (C-rate)200 A (2C)
End of discharge voltage44,8 V
Charge voltage56.8V
Float voltage54V
Max continuous charge current (C-rate)100 A (1C)
Max pulse charge current 10s (C-rate)200 A (2C)
BMS-esLynx Smart BMS NG 500A/1000A (purchased seperately)
Cell measurementsCell voltages and temperatures, battery current
Battery BMS interfaceMale+female cable with M8 circular connector
BluetoothIn the BMS
Operating temperatureDischarge: -20°C to +50°C Charge: +5°C to +50°C
Storage temperature-45°C to +70°C
Humidity (non-condensing)Max. 95%
Protection classIP65
Power connectionM8 (threaded inserts and bolts)
Dimensions (H x W x D) mm235x648x162
Weight (est)37 kg
SafetyUL1973 UL9540A IEC62619
